The four layers of a Niagara system, why the module stage is the bug that makes an effect look dead, and a full solar system built to prove it: sun, planets, orbits, asteroid belt, every parameter exposed.
Loading…
Drop the plugin into your project, point your MCP client at it, and let your AI actually build inside the editor.
A Niagara system is built in four layers: the system asset, one or more emitters inside it, modules stacked into each emitter at a specific stage, and inputs set on those modules. Get the stage wrong and the module compiles fine and does nothing, which is the single most common reason a Niagara effect looks dead for no visible reason.

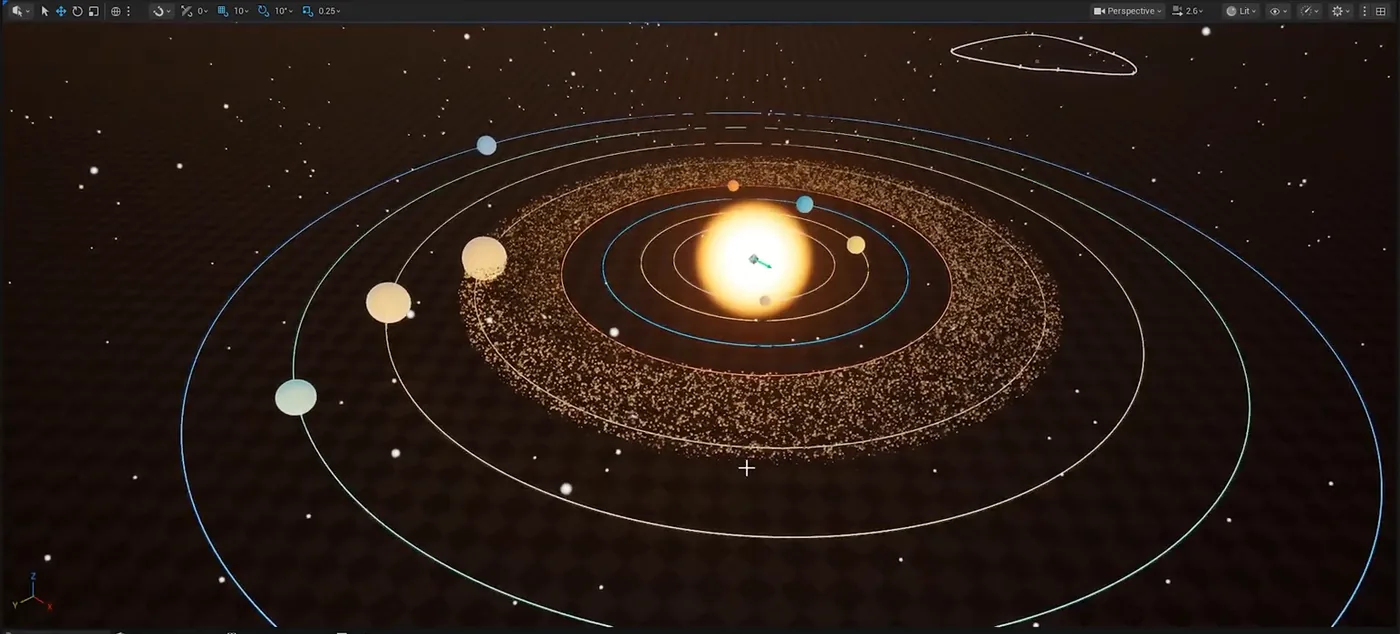

Here is that structure explained, then a real system built to prove it: a full solar system with a sun, planets on their own orbits, an asteroid belt and stardust, every parameter exposed so it can be driven at runtime.
The system is the asset you place in the world. It owns emitters and the user parameters that drive them.
An emitter is one behaviour: the sun, the asteroid belt, the stardust. A system with five distinct things in it usually wants five emitters, not one clever one.
Modules stack inside an emitter, and each goes into a stage. The four that matter are EmitterSpawn and EmitterUpdate, which run once and every frame for the emitter as a whole, and ParticleSpawn and ParticleUpdate, which run once and every frame for each particle.
These are the commands behind the four layers. Start empty, or from a template when you want something on screen immediately:
Create the system:
cfa create_niagara_system --asset-path "/Game/VFX/NS_SolarSystem"Add an emitter:
cfa add_niagara_emitter --system-path "/Game/VFX/NS_SolarSystem" --template "Fountain" --emitter-name "Asteroids"Modules are addressed by full asset path, not short name, and many live under /Niagara/Modules/ with a duplicated name segment. Search rather than typing one from memory:
Find the module:
cfa list_niagara_modules --search velocityAdd it to the correct stage:
cfa add_niagara_module --system-path "/Game/VFX/NS_SolarSystem" --emitter-name "Asteroids" --module-path "/Niagara/Modules/Update/Velocity/VortexVelocity.VortexVelocity" --script-usage ParticleUpdateSee the inputs it actually has:
cfa get_niagara_module_inputs --system-path "/Game/VFX/NS_SolarSystem" --emitter-name "Asteroids" --module-name "VortexVelocity" --script-usage ParticleUpdateSet one (names can contain spaces, so quote them):

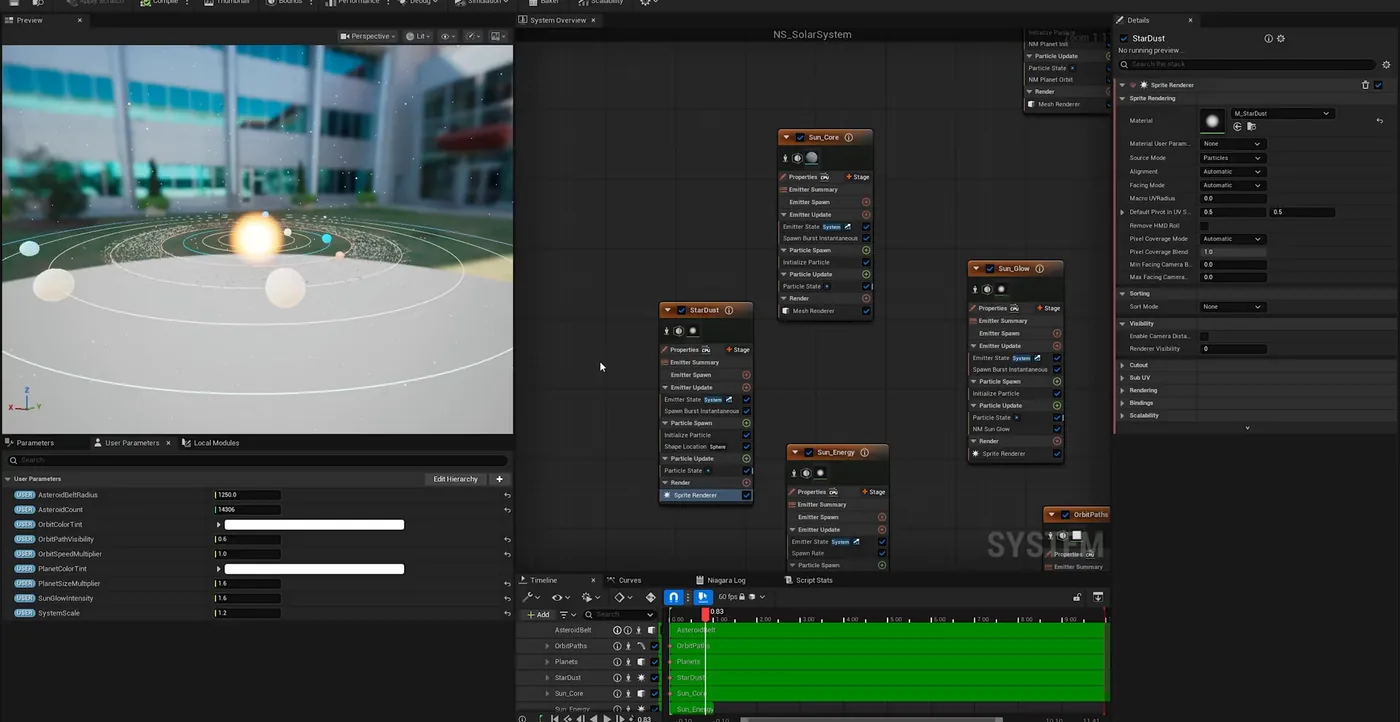

cfa set_niagara_module_input --system-path "/Game/VFX/NS_SolarSystem" --emitter-name "Asteroids" --module-name "VortexVelocity" --input-name "Velocity Amount" --value 400 --script-usage ParticleUpdateThis is the step that separates a system you can use from a system you have to edit. A user parameter is set from outside: from a Blueprint, from the Details panel on the placed actor, or at runtime while the game is playing.
Expose a value:
cfa add_niagara_user_parameter --system-path "/Game/VFX/NS_SolarSystem" --parameter-name "AsteroidCount" --parameter-type "int"
A clean compile does not mean a working effect. Three checks catch nearly everything:
Compile:
cfa compile_niagara_system --system-path "/Game/VFX/NS_SolarSystem"Read the errors, if any:
cfa get_niagara_system_errors --system-path "/Game/VFX/NS_SolarSystem"Validate the stack:
cfa validate_niagara_stack --system-path "/Game/VFX/NS_SolarSystem"Put it in the level:
cfa spawn_niagara_effect --system-path "/Game/VFX/NS_SolarSystem" --location "[0,0,200]"get_niagara_renderer_info and add one with add_niagara_renderer.The solar system above came from one prompt. It is worth being specific about what that actually involved, because "AI built it" is not a useful claim on its own.
It authored the materials first, one per planet surface, plus the sun surface, the sun glow and the stardust. Then the Niagara stack: the emitters, their spawn and update modules, and where the stock module set could not do the maths, it wrote its own scratch pad modules in HLSL.
When it hit an error it asked the editor what the error was, rather than guessing, and fixed it. It placed the effect in the level, took a screenshot, and judged its own result from that screenshot before continuing. Whenever something looked wrong it read the whole system back, checked the warnings and errors, and cleared them before moving to the next thing.
It was not untouched. I stopped it once to point out a material override step it had missed. Everything else it ran on its own.
It is good at the structural work: creating emitters, stacking modules into the right stages, wiring inputs, exposing parameters, and the read-back loop that catches a module in the wrong place. That is most of the tedium in Niagara and almost none of the interesting part.
It is not good at art direction. It will build the effect you described, and whether that effect looks good is still your call and your tuning. What the exposed parameters buy you is that the tuning happens on sliders rather than by reopening modules.
The step-by-step version with every failure mode is in the Niagara walkthrough, and every stack, renderer, event and scratch pad command is in the Niagara reference. For the wider picture of driving the editor this way, see how I use AI to build inside Unreal Engine 5.
